Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  1

  2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY

    See step  2

  3. REMOVE NO. 1 AIR CLEANER INLET

    See step  3

  4. REMOVE AIR CLEANER ASSEMBLY LH

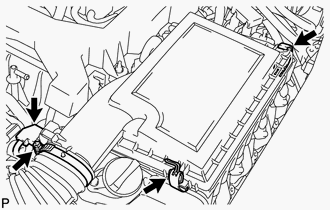

    1. Disconnect the mass air flow meter connector.
      GTY629752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap sub-assembly LH.
    3. Remove the element from the air cleaner case.

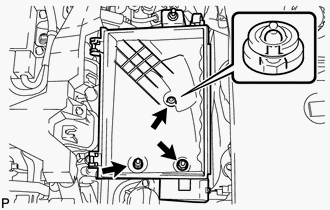

    4. Remove the 2 nuts, clip and air cleaner case.
      GTY685710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR CLEANER ASSEMBLY RH

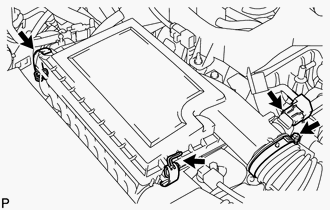

    1. Disconnect the mass air flow meter connector.
      GTY629751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap sub-assembly RH.
    3. Remove the element from the air cleaner case.

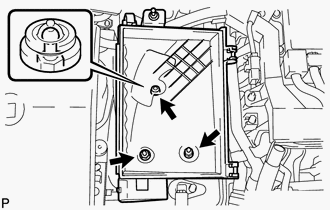

    4. Remove the 2 nuts, clip and air cleaner case.
      GTY685861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE VVT SENSOR
    1. Disconnect the 4 VVT sensor connectors.
      GTY652196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 VVT sensors.
