Installation [09/2015 - 08/2016]: Procedure

HINT:

Perform "Inspection After Repairs" after replacing the fuel pump (Refer to INITIALIZATION [09/2015 - ] ).

1. Apply a light coat of gasoline or grease to a new gasket, and install it to the fuel tank.

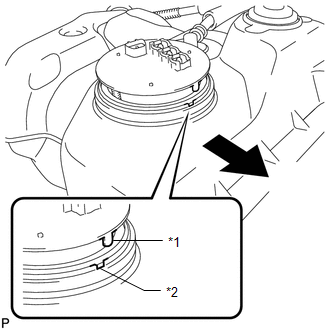

2. Install the fuel suction with pump and gauge tube into the fuel tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Protrusion
   *2	Groove
   	Front Side Vehicle

   NOTE:

   Be careful not to bend the arm of the fuel sender gauge.

   HINT:

   Align the protrusion of the fuel suction with pump and gauge tube with the groove of the fuel tank.

3. Put the retainer on the fuel tank. While holding the fuel suction with pump and gauge tube, tighten the retainer 1 complete turn by hand.
4. Set SST on the retainer.
   • SST: 09808-14030

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Hold the fuel suction with pump and gauge tube upright by hand to ensure that the fuel suction tube gasket is not moved out of position.
   • Securely attach the claws of SST to the protrusions of the retainer and fix SST in place.
   • Install SST while pressing the claws of SST against the retainer (toward the center of SST).

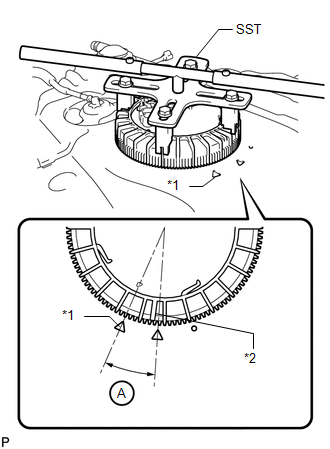

5. Using SST, tighten the retainer until the mark on the retainer is within range A on the fuel tank as shown in the illustration.
   • SST: 09808-14030

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Fuel Tank Side Mark
   *2	Retainer Side Mark

   HINT:

   Fit the tips of SST onto the ribs of the retainer.

1. Install the fuel tank sub-assembly (Refer to INSTALLATION [09/2015 - ] ).
