Accelerator Pedal
›
Components [10/2015 - ]
Components [10/2015 - ]

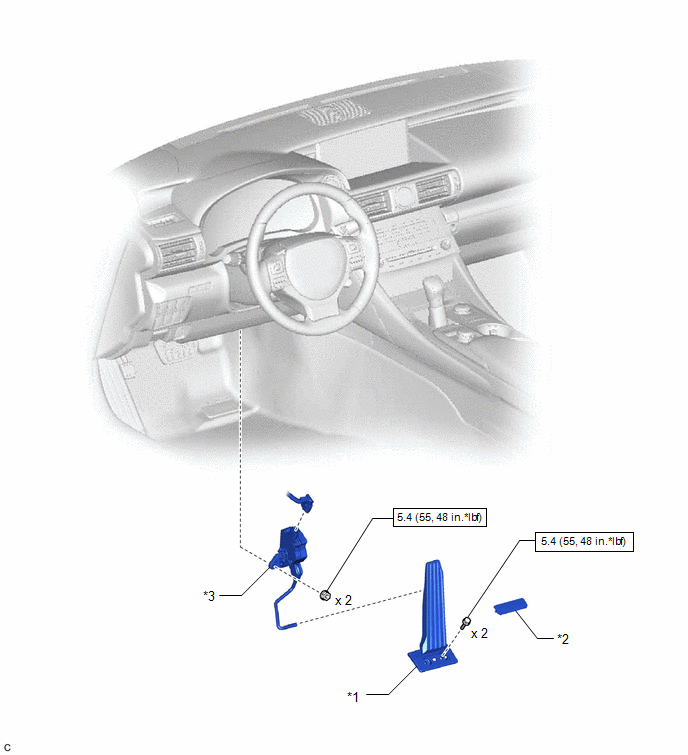

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
ACCELERATOR PEDAL ASSEMBLY
*2
ACCELERATOR PEDAL PAD
*3
ACCELERATOR PEDAL SENSOR ASSEMBLY
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
