Components [10/2015 - ]

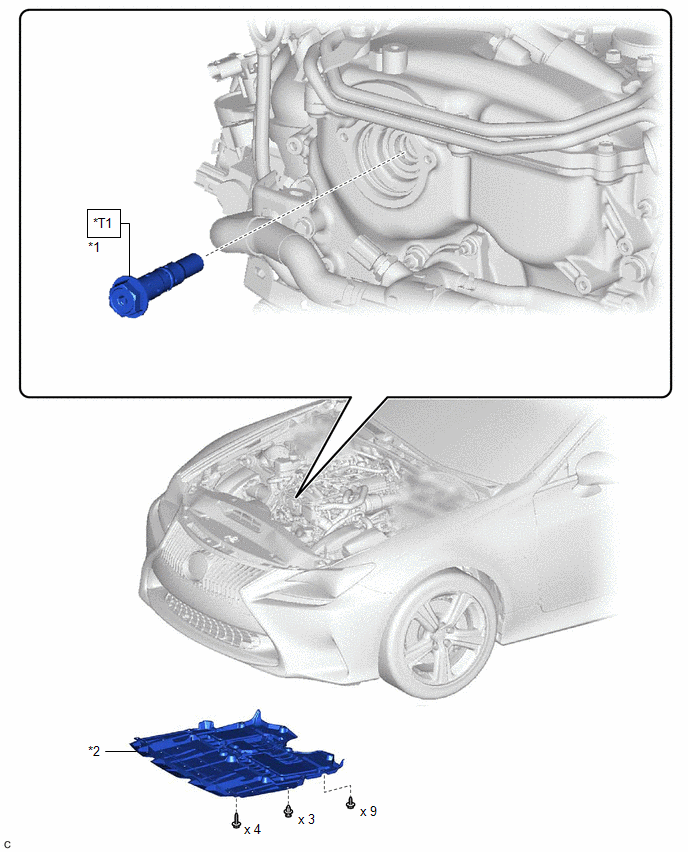

Fig 1: Camshaft Oil Control Valve (For Intake Side) Replacement Components
GTY656713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING GEAR BOLT *2 NO. 1 ENGINE UNDER COVER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
*T1 Type A: 120 N*m (1224 kgf*cm, 89 ft.*lbf)
Type B: 95 N*m (969 kgf*cm, 70 ft.*lbf)		 - -
