Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  2. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
    1. Disconnect the camshaft position sensor connector.

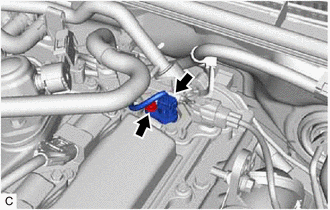

      GTY639718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If a camshaft position sensor has been struck or dropped, replace it.

  3. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
    1. Disconnect the fuel pump assembly connector.

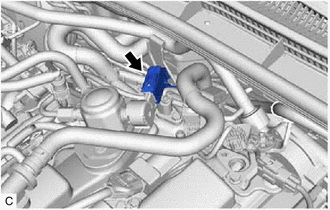

      GTY639716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the camshaft position sensor connector.

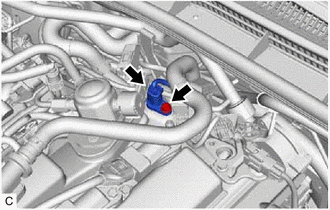

      GTY639714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If a camshaft position sensor has been struck or dropped, replace it.
