Removal [10/2015 - ]: Procedure

  1. REMOVE ENGINE ASSEMBLY WITH TRANSMISSION

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE HEATED OXYGEN SENSOR

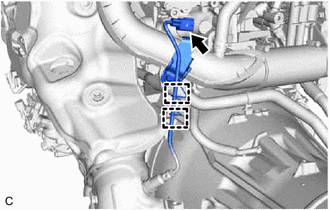

    1. Disconnect the heated oxygen sensor connector.
      GTY678518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.

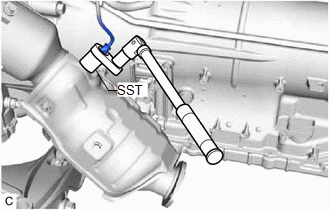

    3. Using SST, remove the heated oxygen sensor from the exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst).
      GTY621744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
