Engine Control System (8AR-FTS) - Service Information
›
Knock Sensor
›
Components [10/2015 - ]
Components [10/2015 - ]

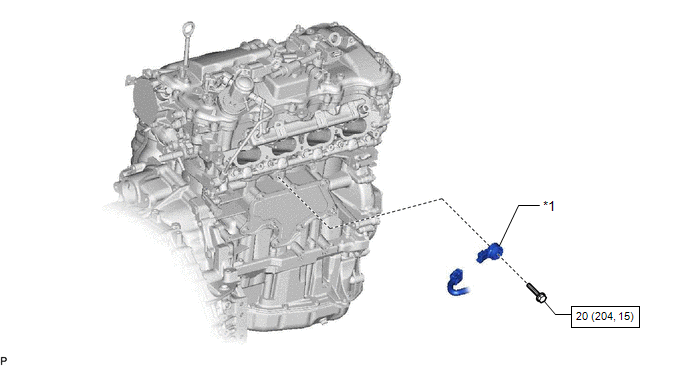

Fig 1: Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
KNOCK SENSOR
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
