Removal [10/2015 - ]: Procedure

  1. REMOVE INTAKE MASS AIR FLOW METER SUB-ASSEMBLY

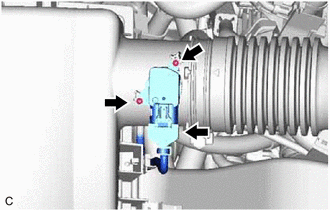

    1. Disconnect the intake mass air flow meter sub-assembly connector.
      GTY639705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and intake mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the intake mass air flow meter sub-assembly has been struck or dropped, replace it.
