Components [10/2015 - ]

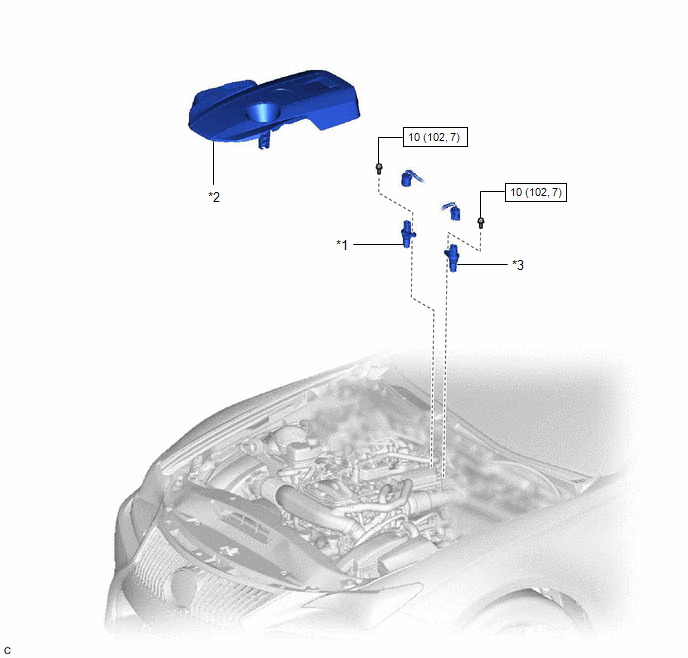

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY637818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT POSITION SENSOR (for Intake Side) *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 CAMSHAFT POSITION SENSOR (for Exhaust Side) - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
