Components [09/2014 - ]

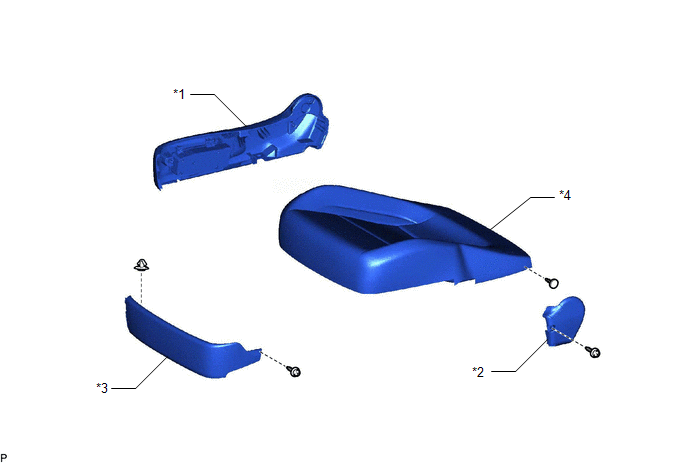

Fig 1: Occupant Detection Sensor Replacement Components
GTY496455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SEAT CUSHION SHIELD RH *2 FRONT SEAT INNER CUSHION SHIELD RH
*3 INNER NO. 1 FRONT SEAT CUSHION SHIELD RH *4 OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION PAD WITH COVER RH)
