Components [09/2014 - 10/2022]

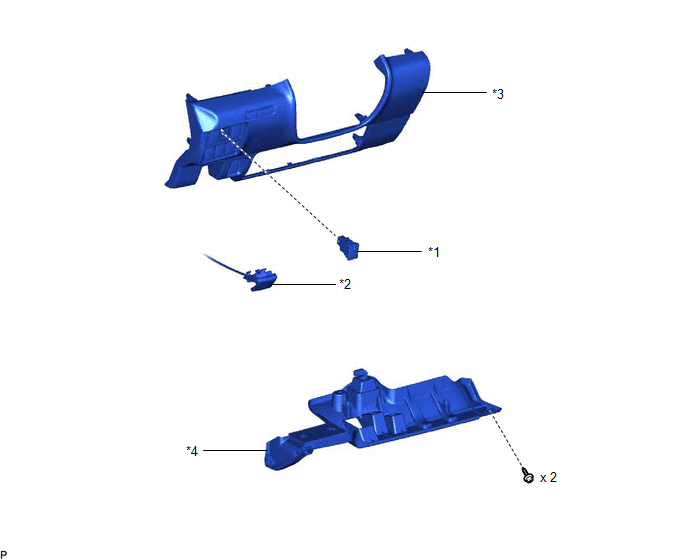

Fig 1: Windshield Deicer Switch Replacement Components [09/2014 - 10/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WIPER DEICER SWITCH	*2	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	*4	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
