Components [09/2014 - 11/2017]

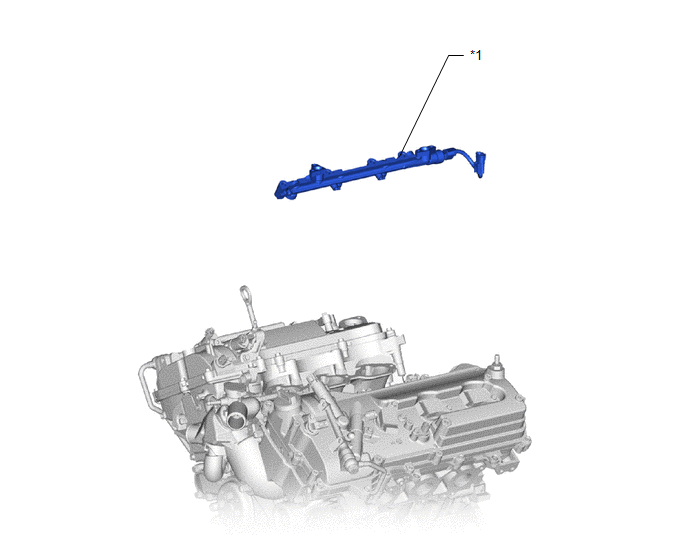

Fig 1: Fuel Pressure Sensor Replacement Components [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR)	-	-
