Components [09/2014 - 11/2017]

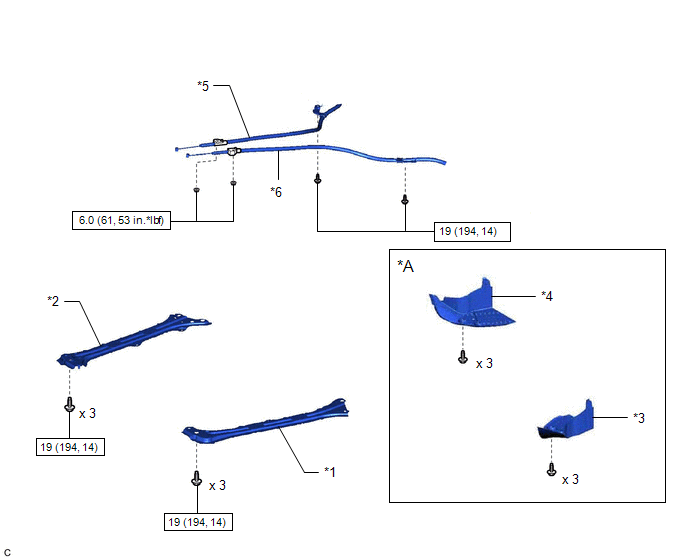

Fig 1: Fuel Tank Replacement Components With Torque Specifications [09/2014 - 11/2017] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Half Cover Type	-	-
*1	REAR BODY MOUNTING CUSHION SUB-ASSEMBLY LH	*2	REAR BODY MOUNTING CUSHION SUB-ASSEMBLY RH
*3	REAR FLOOR SIDE MEMBER COVER LH	*4	REAR FLOOR SIDE MEMBER COVER RH
*5	NO. 2 PARKING BRAKE CABLE ASSEMBLY	*6	NO. 3 PARKING BRAKE CABLE ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

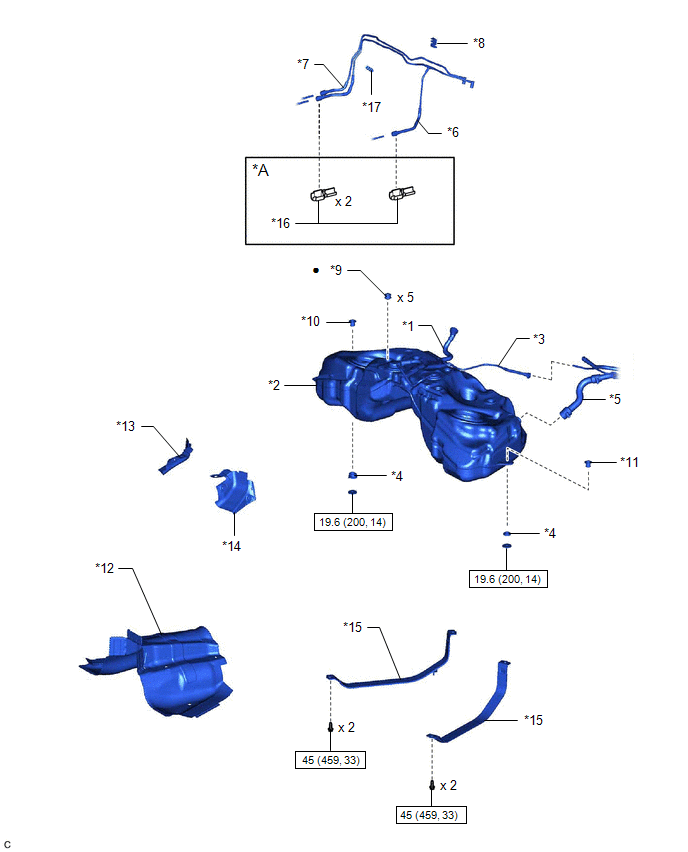

Fig 2: Fuel Tank Replacement Components With Torque Specifications [09/2014 - 11/2017] (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Half Cover Type	-	-
*1	FUEL CUT OFF VALVE TUBE	*2	FUEL TANK ASSEMBLY
*3	FUEL TANK BREATHER TUBE	*4	FUEL TANK CUSHION
*5	FUEL TANK TO FILLER PIPE HOSE	*6	FUEL TANK MAIN TUBE SUB-ASSEMBLY
*7	FUEL TANK RETURN TUBE	*8	NO. 5 FUEL TUBE CLAMP
*9	NO. 6 FUEL TANK CUSHION	*10	FUEL TANK BRACKET
*11	FUEL TANK CUSHION SET	*12	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
*13	NO. 2 FUEL TANK PROTECTOR	*14	NO. 3 FUEL TANK PROTECTOR
*15	NO. 1 FUEL TANK BAND SUB-ASSEMBLY	*16	NO. 1 FUEL TUBE PROTECTOR
*17	NO. 3 FUEL TUBE CLAMP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
