Components [09/2014 - 11/2017]

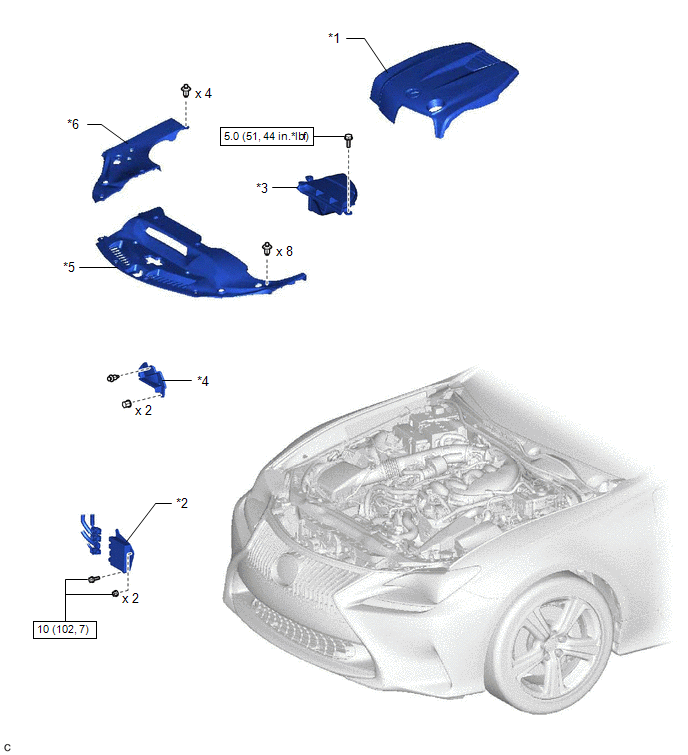

Fig 1: Injector Driver Replacement Components With Torque Specifications [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	V-BANK COVER SUB-ASSEMBLY	*2	INJECTOR DRIVER
*3	INLET NO. 1 AIR CLEANER	*4	NO. 1 ENGINE COVER
*5	COOL AIR INTAKE DUCT SEAL	*6	ENGINE ROOM SIDE COVER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
