Components [09/2014 - 11/2017]

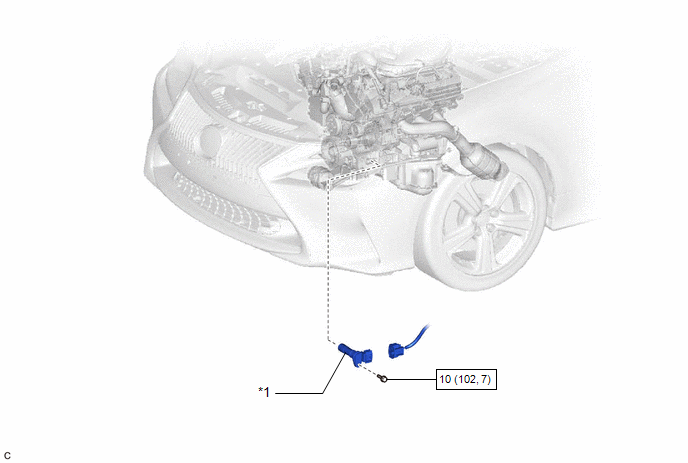

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [09/2014 - 11/2017]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CRANKSHAFT POSITION SENSOR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
