Components [09/2014 - 10/2015]

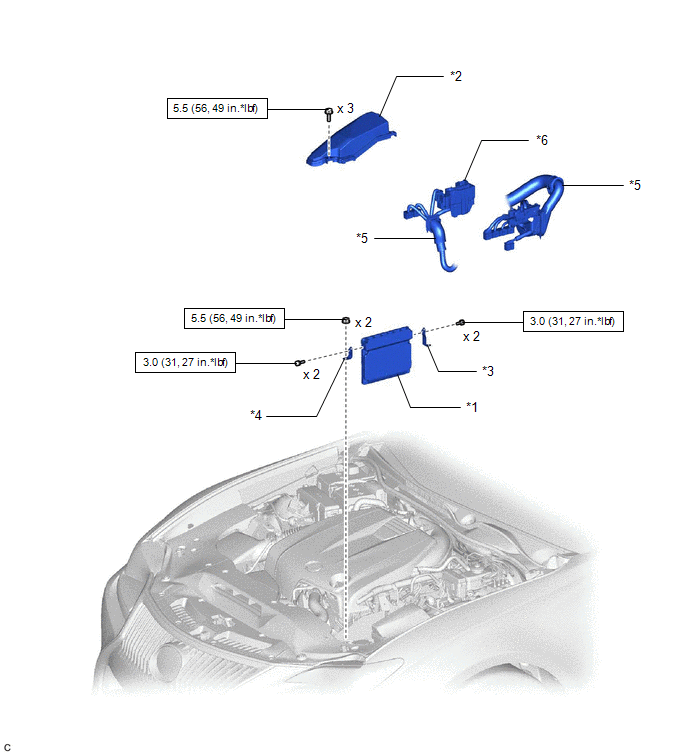

Fig 1: ECM Replacement Components With Torque Specifications [09/2014 - 10/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ECM	*2	ENGINE ROOM ECU COVER
*3	NO. 1 ECM BRACKET	*4	NO. 2 ECM BRACKET
*5	WIRE HARNESS	*6	CONNECTOR HOLDER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
