Components [09/2014 - 10/2018]

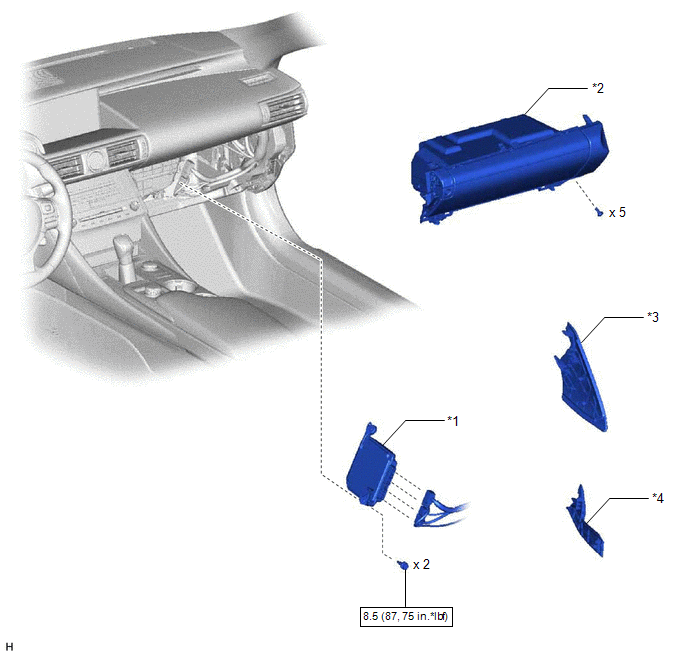

Fig 1: Steering Control ECU Replacement Components With Torque Specifications [09/2014 - 10/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT STEERING CONTROL ECU	*2	GLOVE COMPARTMENT DOOR ASSEMBLY
*3	INSTRUMENT PANEL FINISH PANEL END RH	*4	FRONT NO. 2 CONSOLE BOX INSERT
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
