Components [10/2018 - ]

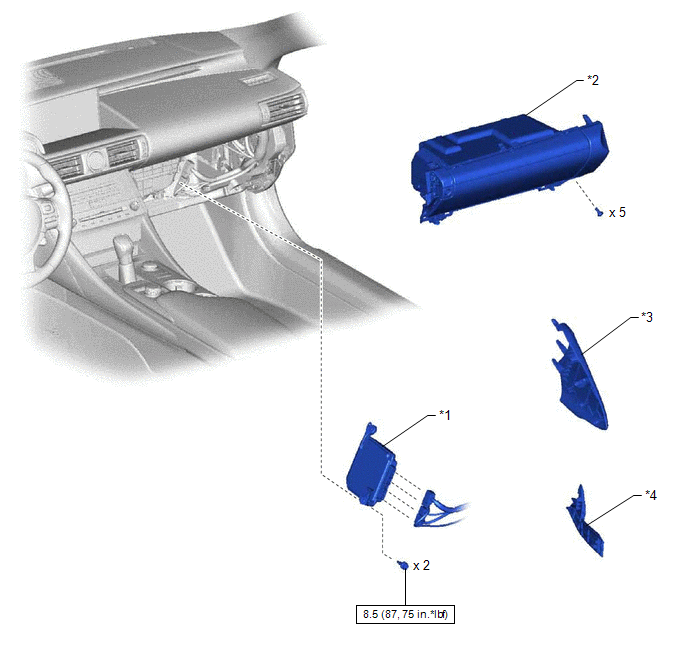

Fig 1: Steering Control ECU Replacement Components With Torque Specifications [10/2018 - ]
GTY830387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT STEERING CONTROL ECU *2 GLOVE COMPARTMENT DOOR ASSEMBLY
*3 INSTRUMENT PANEL FINISH PANEL END RH *4 FRONT NO. 2 CONSOLE BOX INSERT
N.m (kgf/cm, ft.lbf): Specified torque - -
