Components [09/2014 - ]

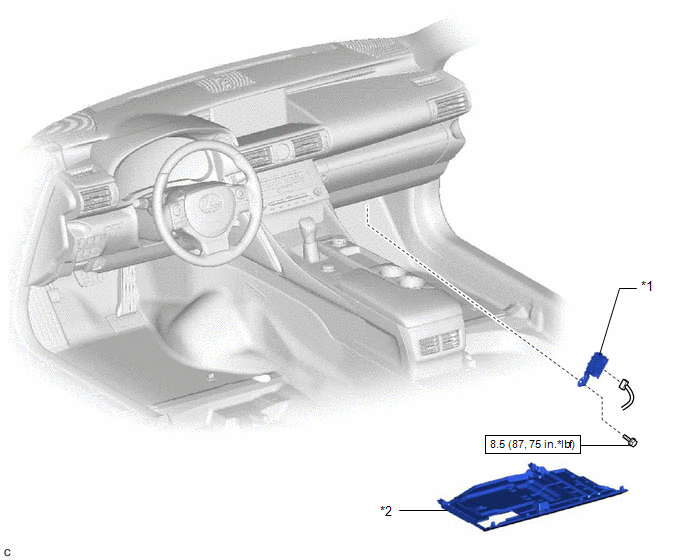

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	4WD ECU ASSEMBLY	*2	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
