Components [09/2014 - ]

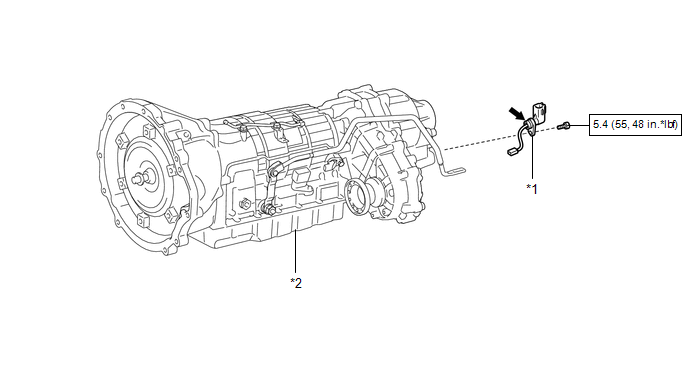

Fig 1: Transfer Wire Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	TRANSFER TRANSMISSION WIRE	*2	AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque		ATF WS
