Components [09/2014 - 11/2017]

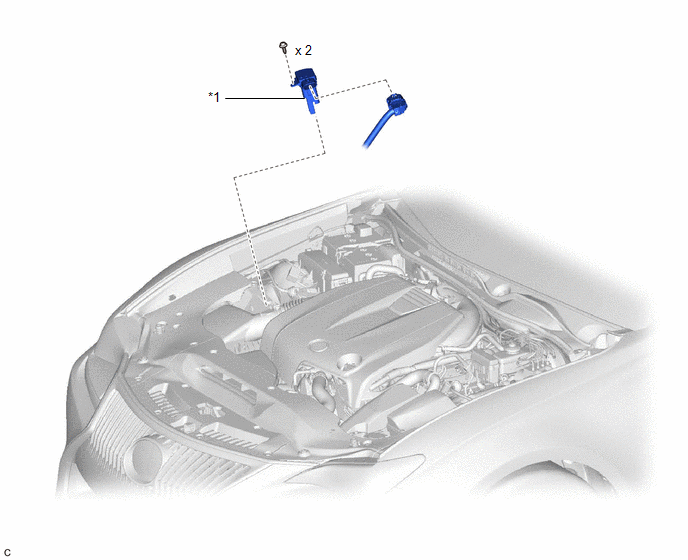

Fig 1: Mass Air Flow Meter Replacement Components [09/2014 - 11/2017]
GTY521414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
