Removal [09/2014 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 3 [03/2019 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 4 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 4 [03/2019 - ]

  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 5 [03/2019 - ]

  4. REMOVE DOOR TRIM COVER

    Refer to PROCEDURE - Step 6 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 6 [03/2019 - ]

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - ]

  6. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

    Refer to PROCEDURE - Step 8 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - ]

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - ]

  8. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY
    NOTE:

    Be sure to replace the screws and grommets with new ones.

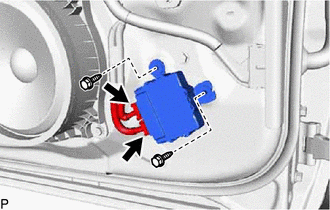

    1. Disconnect the 2 connectors.
      GTY509799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and outer mirror control ECU assembly.
    3. Remove the 2 grommets.
