Power Window Control System - Diagnostic Codes & Symptom Tests
›
Power Window Control System
›
Driver Side Power Window does not Operate with Power Window Master Switch [09/2014 - ]
›
Wiring Diagram

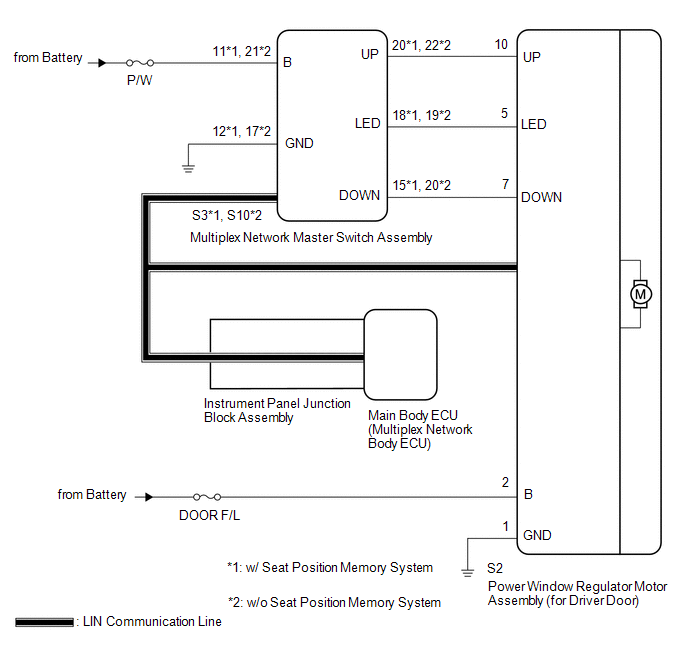

Driver Side Power Window does not Operate with Power Window Master Switch [09/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
