Installation [09/2015 - ]: Procedure

1. Connect the connector.
2. Pass the cruise control switch wire under the rib as shown in the illustration, and temporarily install the cruise control main switch with the 2 screws.

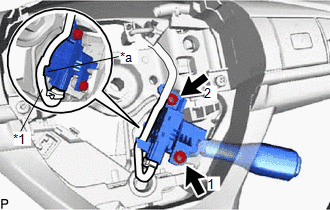

   Fig 1: Cruise Control Main Switch Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Cruise Control Switch Wire
   *a	Rib

3. Tighten the 2 screws to install the cruise control main switch.

   Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

   HINT:

   Tighten the screws in the order shown in the illustration.

Refer to INSTALLATION [09/2015 - 08/2016] Refer to INSTALLATION [08/2016 - ]
