Disassembly [09/2015 - 12/2017]: Procedure

  1. REMOVE GENERATOR PULLEY CAP
    1. Using a screwdriver, remove the generator pulley cap from the generator pulley with clutch.
      GTY948325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the generator pulley cap.

  2. REMOVE GENERATOR PULLEY WITH CLUTCH
    1. Secure the generator assembly in a vise between aluminum plates.
    2. Fit SST to the generator pulley with clutch.
      • SST: 09820-30010
      GTY947718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Generator Pulley with Clutch
    3. Fit a T50 "TORX" socket wrench into the rotor shaft end.
      GTY948313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rotor Shaft
      *b T50 "TORX" Socket Wrench

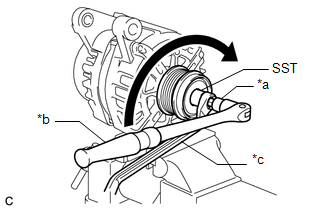

    4. Loosen the generator pulley with clutch by turning the T50 "TORX" socket wrench as shown in the illustration.
      GTY947526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a T50 "TORX" Socket Wrench
      *b Turn
      *c Hold
      NOTE:
      • Check that the generator assembly is secured in the vise tightly.
      • Hold SST tightly during the operation.
    5. Remove SST and the T50 "TORX" socket wrench from the generator pulley with clutch.
    6. Remove the generator pulley with clutch from the rotor shaft.
    7. Remove the generator assembly from the vise.
  3. REMOVE GENERATOR REAR END COVER

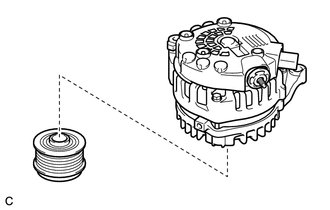

    1. Place the generator assembly on the generator pulley with clutch.
      GTY960481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and generator rear end cover from the generator coil assembly.
      GTY948056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR REGULATOR ASSEMBLY
    1. Remove the 2 bolts, stud bolt and generator regulator assembly from the generator coil assembly.
      GTY947905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Stud Bolt
  5. REMOVE GENERATOR ROTOR ASSEMBLY
    1. Remove the 4 bolts and generator coil assembly.
      GTY948316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the generator rotor assembly from the generator drive end frame.
      GTY948189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Generator Rotor Assembly
      *2 Generator Drive End Frame
  6. INSPECT GENERATOR DRIVE END FRAME BEARING

    See step  4

  7. REMOVE GENERATOR DRIVE END FRAME BEARING
    1. Using a T20 "TORX" socket wrench, remove the 4 screws and retainer plate from the generator drive end frame.
      GTY948318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, tap out the generator drive end frame bearing.
      GTY948211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00250
      • SST: 09950-70010
        1. 09951-07100
