Components [07/2015 - ]: Illustration

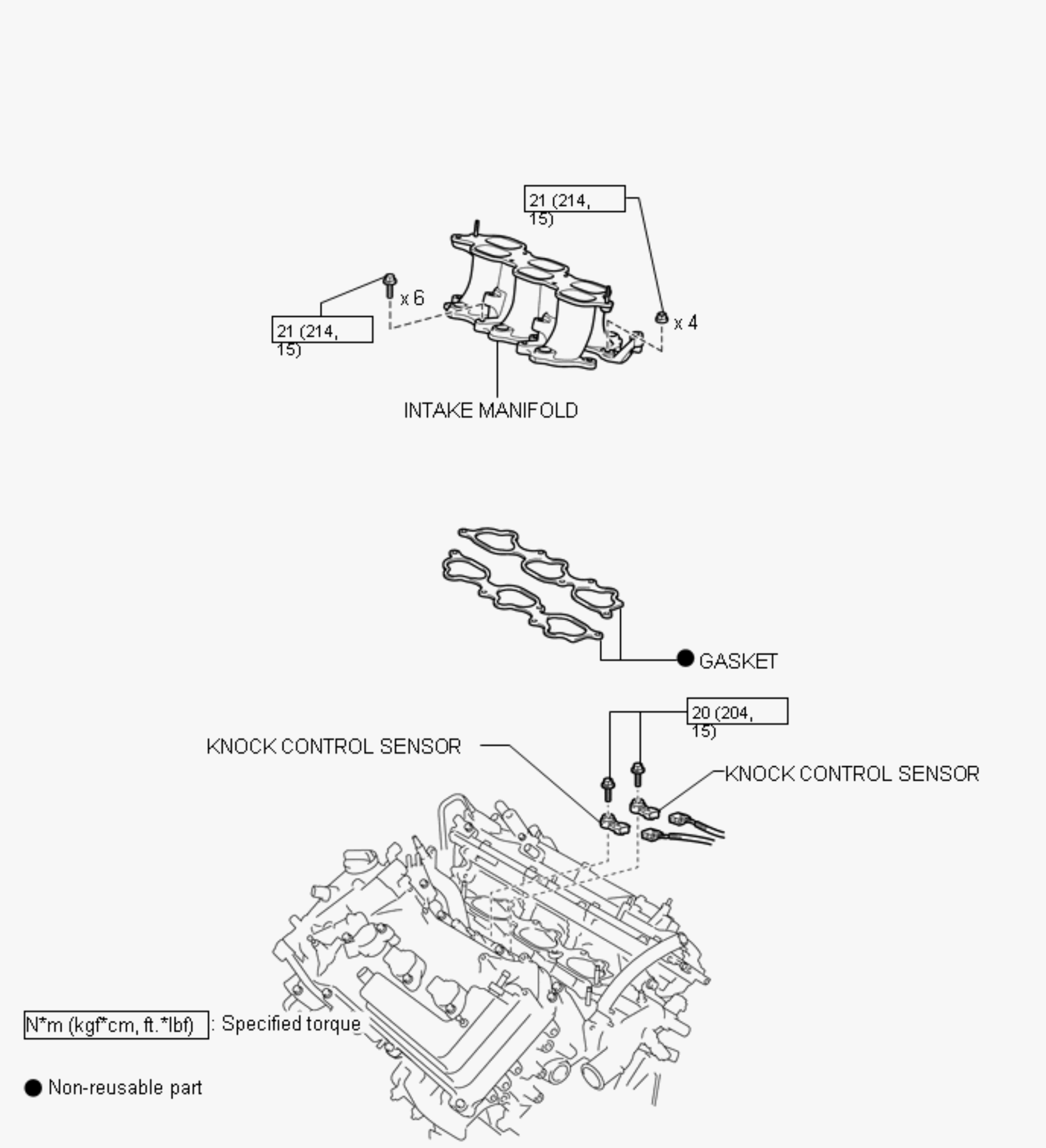

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY612781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
