Installation [10/2015 - ]: Procedure

1. Apply gasoline to 2 new O-rings. Then install the 2 O-rings to the fuel main valve assembly (for Low Pressure).
2. Apply gasoline to 2 new O-rings. Then install the 2 O-rings to the fuel main valve assembly (for High Pressure).
3. Install the 2 fuel main valve assemblies to the fuel filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

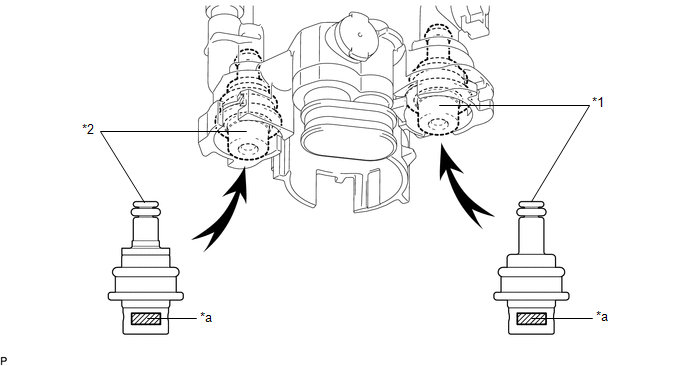

   *1	Fuel Main Valve Assembly (for Low Pressure)	*2	Fuel Main Valve Assembly (for High Pressure)
   *a	Identification Mark (Part Number)	-	-

   NOTE:

   • When installing the O-rings, make sure they do not become pinched or cut.
   • The fuel main valve assembly (for Low Pressure) and fuel main valve assembly (for High Pressure) have identification marks (part numbers). If the parts are installed in the wrong location, the engine may stall. Therefore, make sure to install the parts in the correct location.

   HINT:

   A	Fuel Main Valve Assembly (for Low Pressure)	23070-31***
   B	Fuel Main Valve Assembly (for High Pressure)	23070-36***

4. Install the 2 clips to the fuel filter.

Refer to REASSEMBLY [10/2015 - ]
