Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE FUEL LID WITH LOCK MOTOR ASSEMBLY

    (Refer to REMOVAL [09/2014 - ] )

  2. REMOVE SEAT BELT CONTROL ECU

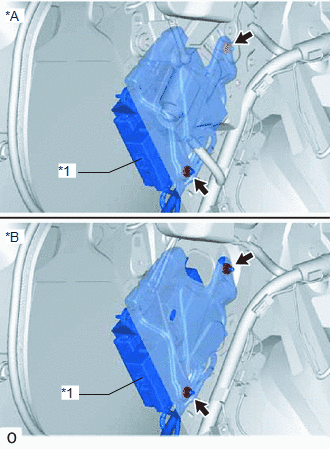

    1. Remove the 2 nuts and disconnect the parking brake ECU assembly from the vehicle body.
      GTY656561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/ Power Trunk Lid System
      *B w/o Power Trunk Lid System
      *1 Parking Brake ECU Assembly

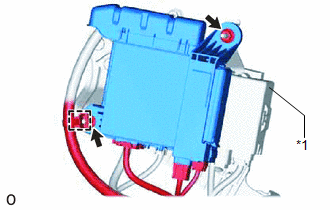

    2. Detach the clamp.
      GTY401966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts and disconnect the No. 1 junction block assembly from the parking brake ECU assembly.
      TEXT IN ILLUSTRATION

      *1 Parking Brake ECU Assembly

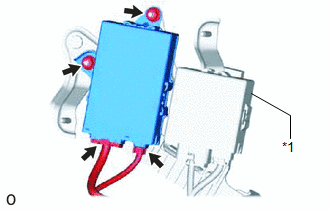

    4. Disconnect the 2 connectors.
      GTY416568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 nuts and seat belt control ECU from the parking brake ECU assembly.
      TEXT IN ILLUSTRATION

      *1 Parking Brake ECU Assembly
