Installation [10/2015 - ]: Procedure

  1. INSTALL FRONT WIPER BLADE

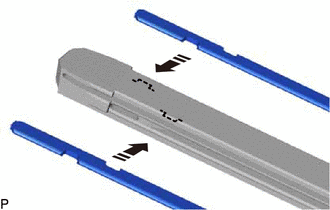

    1. Install the 2 front wiper rubber backing plates to the wiper rubber as shown in the illustration.
      GTY672835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:
      • Align the protrusions on the wiper rubber and the notches of the backing plates.
      • Align the curves of the backing plates and the windshield glass.

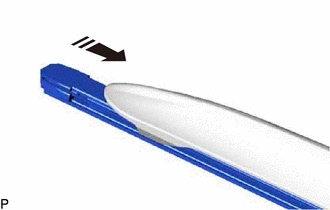

    2. Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.
      GTY668727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

  2. INSTALL FRONT WIPER BLADE

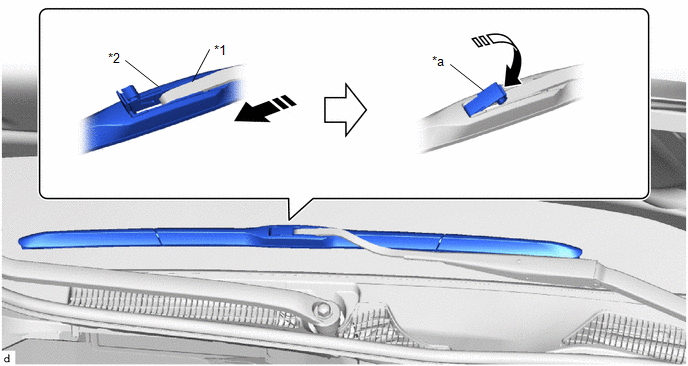

    1. Install the front wiper blade and push down the holder of the front wiper blade as shown in the illustration.
      GTY653230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Wiper Arm *2 Front Wiper Blade
      *a Holder - -
      Install in this Direction (1) Remove in this Direction (2)
