Components [09/2020 - ]

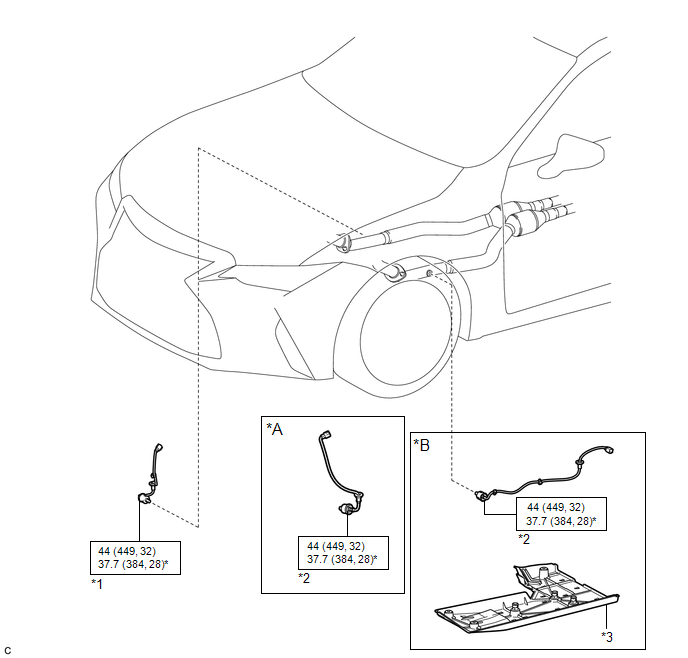

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications [09/2020 - ]
GTY965110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for 2WD *B for AWD
*1 HEATED OXYGEN SENSOR (for Bank 1) *2 HEATED OXYGEN SENSOR (for Bank 2)
*3 FRONT FLOOR COVER LH - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
