Steering Angle Sensor
›
Components [01/2017 - ]
Components [01/2017 - ]

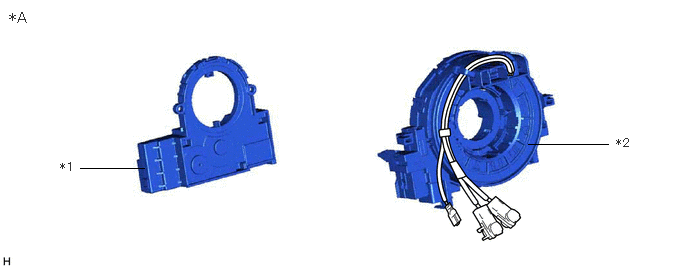

Fig 1: Steering Angle Sensor Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/ Steering Heater
-
-
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY

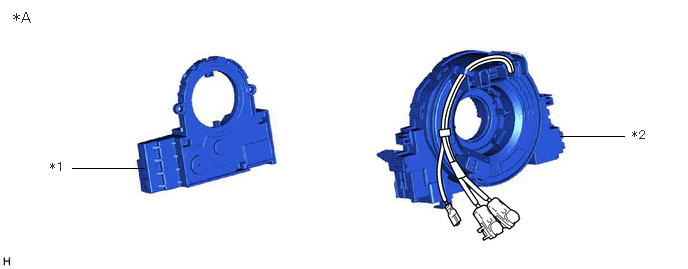

Fig 2: Steering Angle Sensor Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
w/o Steering Heater
-
-
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY
