Removal [01/2017 - 05/2023]: Procedure

Refer to REMOVAL [01/2017 - 05/2023]

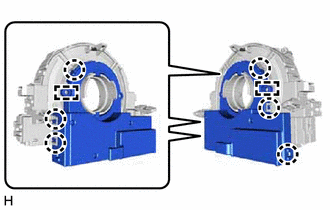

1. Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the claws and pins of the spiral cable sub-assembly.
