Installation [05/2023 - ]: Procedure

  1. INSTALL INTEGRATION CONTROL SUPPLY
  2. INSTALL NO. 2 INTEGRATION CONTROL SUPPLY BRACKET
    1. Attach the guide and install the No. 2 integration control supply bracket with the 2 bolts.

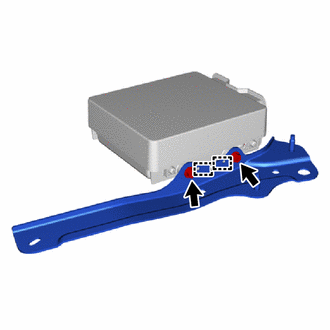

      GTY1242458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  3. INSTALL NO. 1 INTEGRATION CONTROL SUPPLY BRACKET
    1. Attach the guide and install the No. 1 integration control supply bracket with the 2 bolts.
      GTY1242457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  4. INSTALL INTEGRATION CONTROL SUPPLY WITH BRACKET
    1. Attach the guide and temporarily install the integration control supply with bracket as shown in the illustration.
    2. Tighten the 2 bolts and 2 nuts to install the integration control supply with bracket.

      Nut

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      Bolt

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    3. Connect the connector.

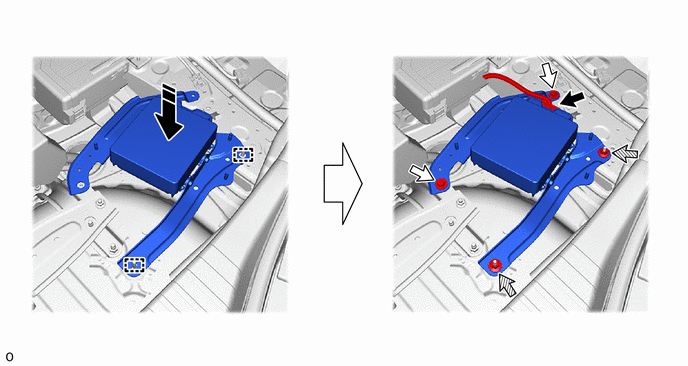

      GTY1241987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction Connector
      Bolt Nut
  5. INSTALL PARKING ASSIST ECU

    Refer to INSTALLATION [05/2023 - ]

  6. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  7. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13

  8. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [05/2023 - ]
