Installation [10/2023 - ]: Procedure

1. Attach the 3 claws and install the battery current sensor holder to the battery state sensor assembly.
2. Install the battery state sensor assembly to the battery and tighten the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

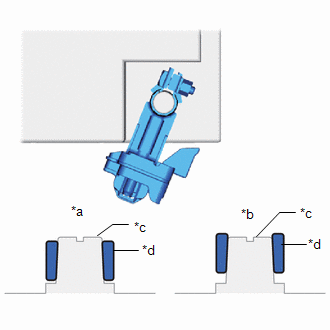

   *a	Correct
   *b	Incorrect
   *c	Negative Battery Terminal
   *d	Pole Clamp

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

   NOTE:

   The negative battery terminal protrudes from the pole clamp. (or they can be the same height)

   HINT:

   Position the battery state sensor assembly as shown in the illustration.

3. Connect the wire harness to the battery state sensor assembly with the nut.

   Torque: 7.6 N.m (77 kgf/cm, 67 in.lbf)

4. Connect the battery state sensor assembly connector.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 11

Refer to WORK PROCEDURE [10/2023 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2023 - ]
