Components [09/2015 - ]

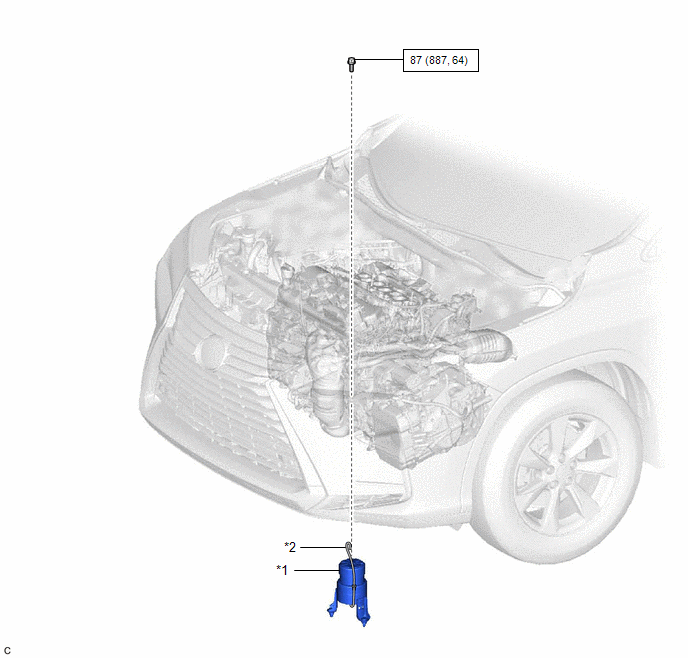

Fig 1: Active Control Engine Mount Replacement Components With Torque Specifications
GTY665785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT ENGINE MOUNTING INSULATOR *2 VACUUM HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -
