Components [08/2021 - ]

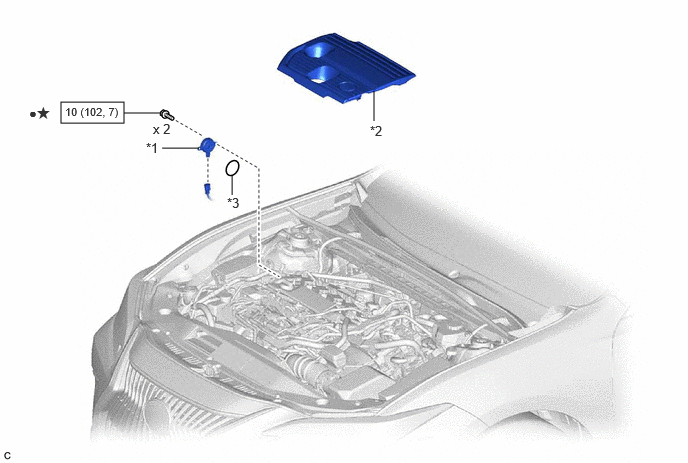

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications [08/2021 - ]
GTY1084676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
