Removal [10/2015 - ]: Procedure

Refer to PROCEDURE - Step 9 (10/2015 - 09/2016) or PROCEDURE - Step 9 (09/2016 -)

1. Disconnect the crankshaft position sensor connector.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

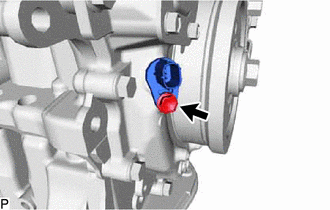

   Remove the bolt and crankshaft position sensor.
