Installation [01/2017 - ]: Procedure

  1. INSTALL BRAKE HOLD SWITCH

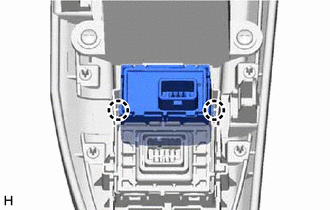

    1. Attach the 2 claws to install the brake hold switch to the shifting hole cover assembly.
      GTY790373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SHIFTING HOLE COVER ASSEMBLY

    Refer to PROCEDURE - Step 9 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 9 [05/2023 - ]

  3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1
