Components [09/2015 - ]

Fig 1: Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (1 Of 2)
GTY669733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

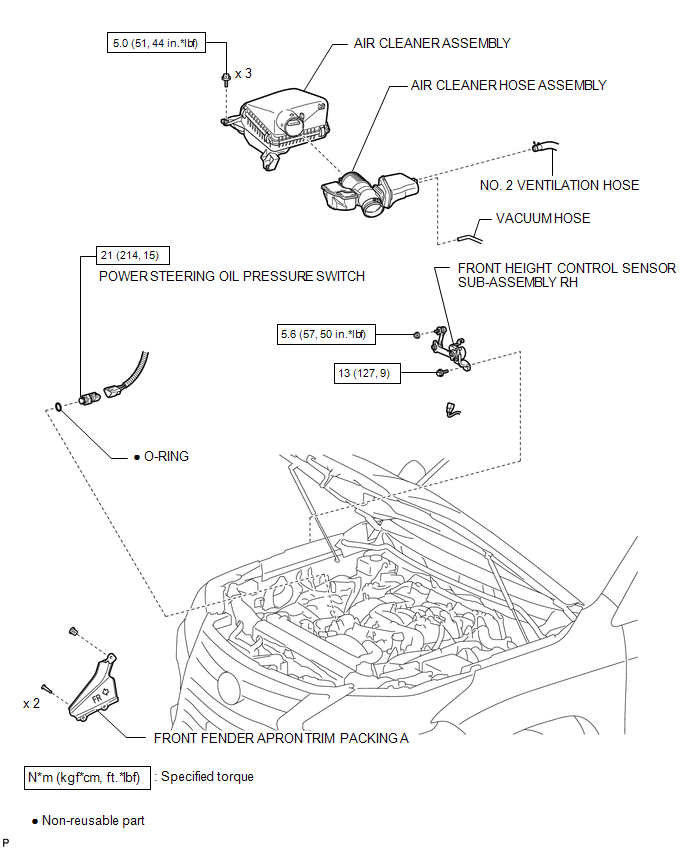

Fig 2: Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (2 Of 2)
GTY946770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
