Removal [10/2018 - 07/2022]: Procedure

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 13

REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

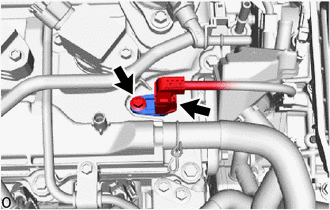

Disconnect the camshaft position sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
NOTE:
If the camshaft position sensor has been struck or dropped, replace it.

REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

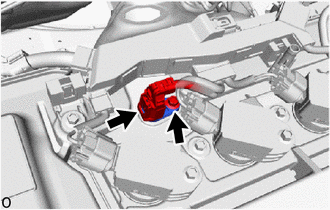

Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTE:

If the camshaft position sensor has been struck or dropped, replace it.
