Installation [10/2018 - ]: Procedure

  1. INSTALL WIPER RUBBER
    1. Install the 2 front wiper rubber backing plates to the wiper rubber as shown in the illustration.
      GTY835508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:
      • Align the protrusions on the wiper rubber and the notches of the backing plates.
      • Align the curves of the backing plates and the windshield glass.
    2. Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.

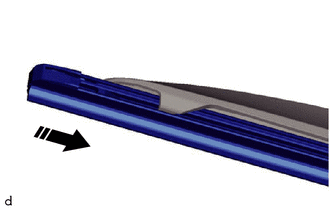

      GTY833737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

  2. INSTALL FRONT WIPER BLADE
    1. Install the front wiper blade to push down the holder as shown in the illustration.
      GTY805287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Push down the holder of the front wiper blade as shown in theillustration.
      GTY784064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Holder
      Push Down
