Components [06/2018 - 08/2021]

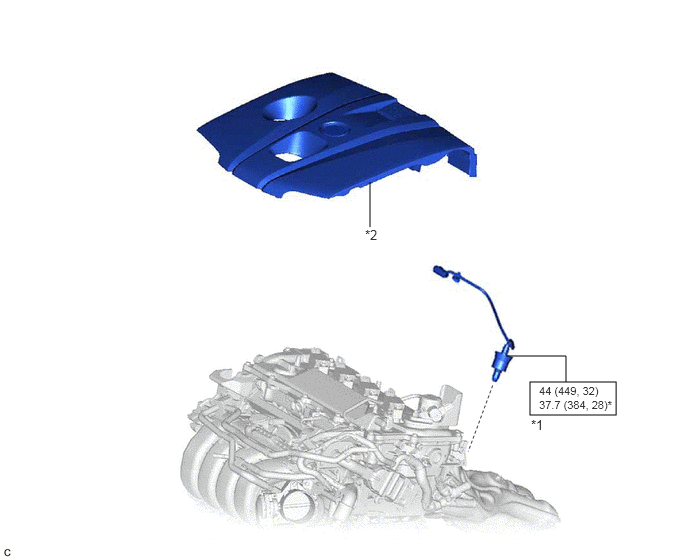

Fig 1: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components With Torque Specifications [06/2018 - 08/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR FUEL RATIO SENSOR	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
