Components [06/2018 - ]

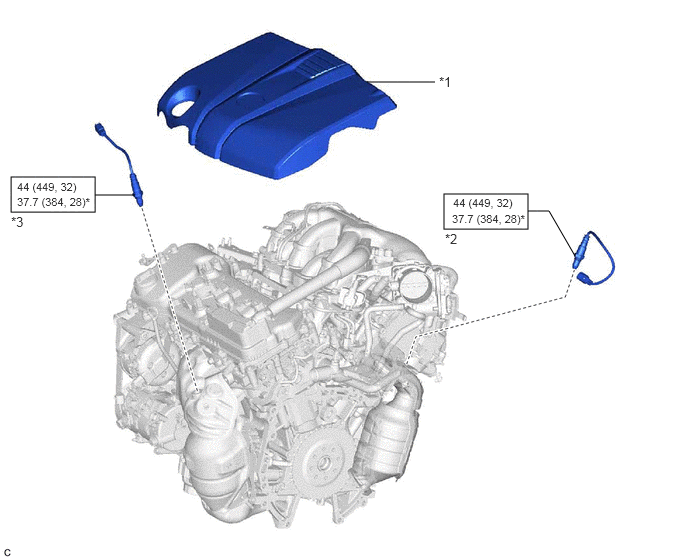

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY821277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 V-BANK COVER SUB-ASSEMBLY *2 AIR FUEL RATIO SENSOR (for Bank 1)
*3 AIR FUEL RATIO SENSOR (for Bank 2) - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
