Components [06/2018 - ]

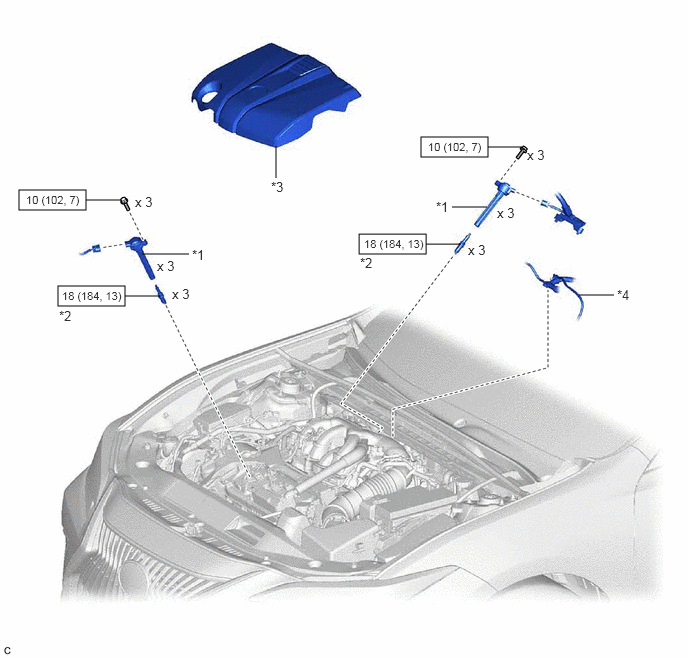

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
*3	V-BANK COVER SUB-ASSEMBLY	*4	VACUUM HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
