Components [10/2015 - ]: Illustration

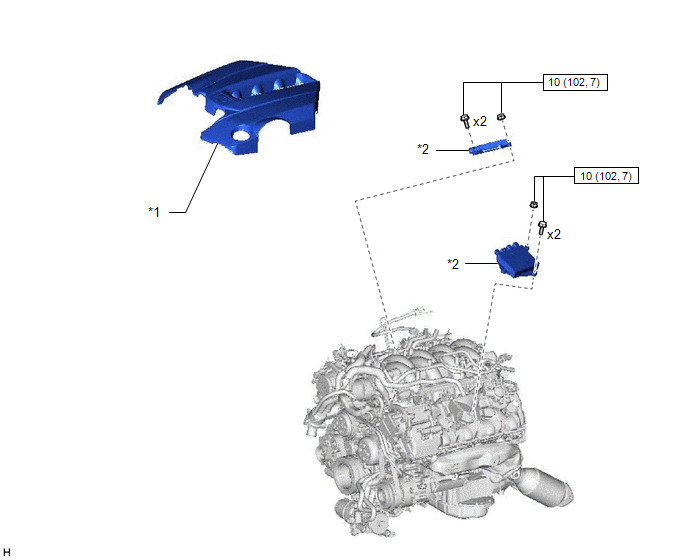

Fig 1: Injector Driver Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	V-BANK COVER SUB-ASSEMBLY	*2	INJECTOR DRIVER
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
