Components [10/2015 - ]: Illustration

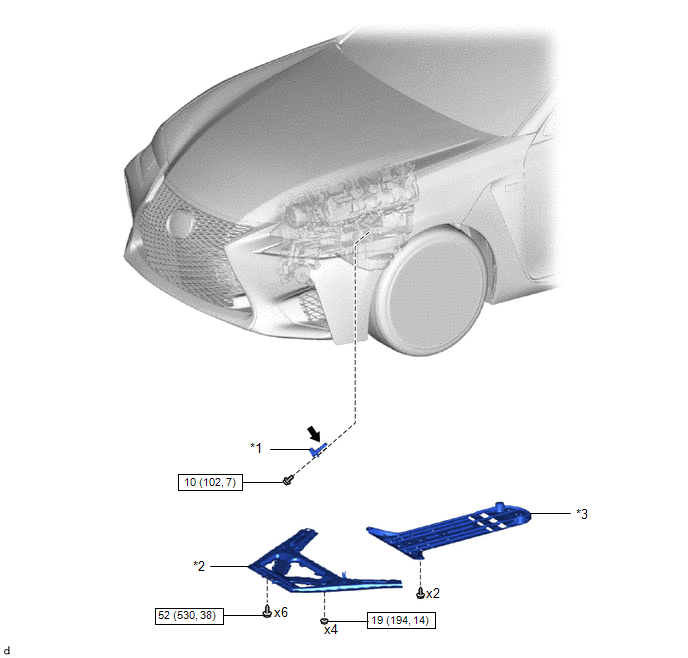

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CRANKSHAFT POSITION SENSOR	*2	FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
*3	NO. 2 ENGINE UNDER COVER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		ENGINE OIL
