Components [12/2017 - ]

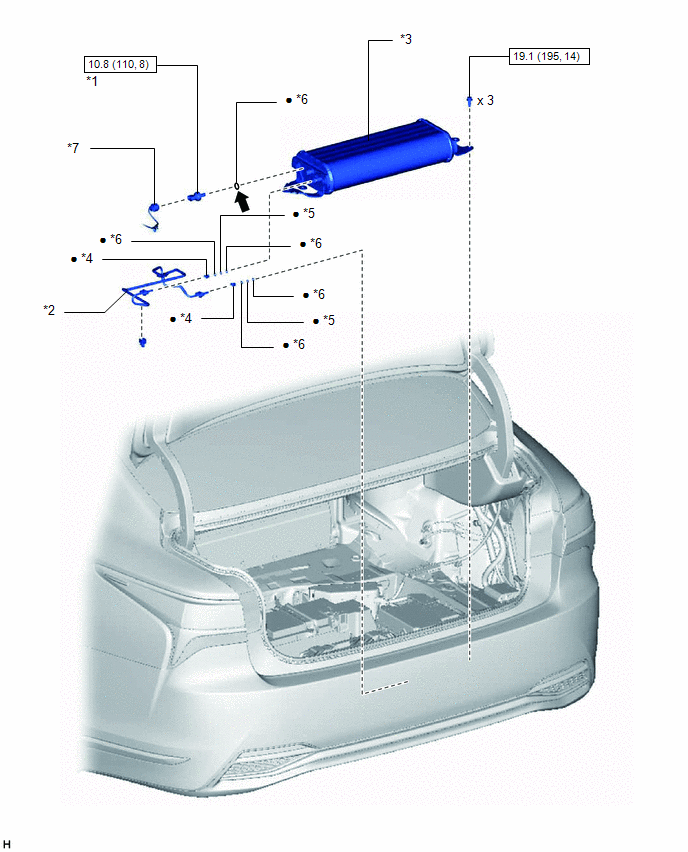

Fig 1: Pneumatic Tank Replacement Components With Torque Specifications
GTY798042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEIGHT CONTROL PRESSURE SENSOR *2 NO. 5 HEIGHT CONTROL TUBE
*3 PNEUMATIC TANK WITH TUBE ASSEMBLY *4 NO. 2 CONNECTOR
*5 PLATE *6 O-RING
*7 CONNECTOR - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Lithium soap base glycol grease - -
