Installation [10/2017 - 10/2023]: Procedure

  1. INSTALL OIL LEVEL SENSOR BRACKET
    1. Install the engine oil level sensor bracket.
  2. INSTALL ENGINE OIL LEVEL SENSOR
    NOTE:
    • Be careful not to allow engine oil to contact the terminals.
    • Do not use a brakes cleaner or a solvent on a connector.
    1. Install the engine oil level sensor with the 2 nuts and attach the clamp.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Apply a light coat of engine oil to the O-ring of the engine oil level sensor.
    3. for 2WD:
      GTY784203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new clip to the engine oil level sensor as shown in the illustration.
    4. for AWD:

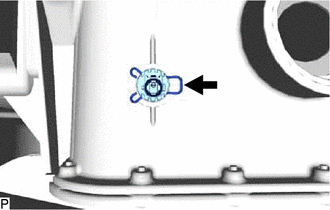

      GTY787793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new clip to the engine oil level sensor as shown in the illustration.
    5. Connect the engine oil level sensor connector.
  3. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

    See step  8 [10/2017 - 10/2020], or see step  8 [10/2020 - 10/2023]

  4. ADD ENGINE OIL

    Refer to PROCEDURE - Step 11 [10/2017 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 10/2023]

  5. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 13 [10/2017 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 10/2023]

  6. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  7. INSTALL STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 138 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 138 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 137 [10/2020 - 10/2023]

  8. INSTALL FRONT SUSPENSION MEMBER BRACE (for AWD)

    Refer to PROCEDURE - Step 139 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 139 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 138 [10/2020 - 10/2023]

  9. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 140 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 140 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 139 [10/2020 - 10/2023]

  10. INSTALL TRANSMISSION UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 141 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 141 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 140 [10/2020 - 10/2023]

  11. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 142 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 142 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 141 [10/2020 - 10/2023]

  12. INSTALL STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 143 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 143 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 142 [10/2020 - 10/2023]

  13. INSTALL FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 144 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 144 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 143 [10/2020 - 10/2023]

  14. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 145 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 145 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 144 [10/2020 - 10/2023]

  15. INSTALL TRANSMISSION UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 146 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 146 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 145 [10/2020 - 10/2023]

  16. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 147 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 147 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 146 [10/2020 - 10/2023]
