Components [10/2018 - 07/2022]

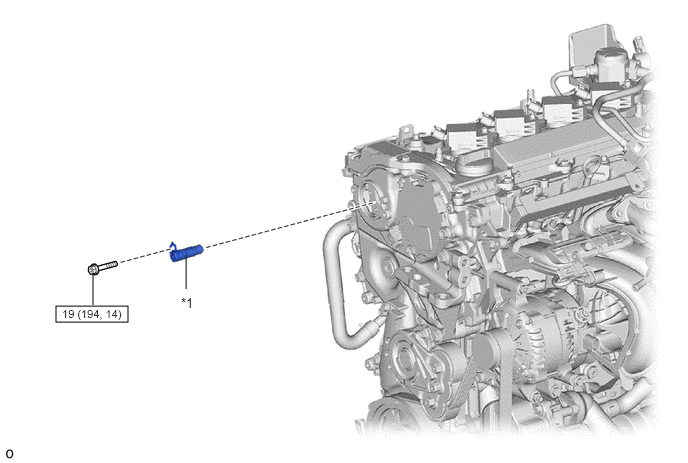

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
