Removal [10/2018 - 07/2022]: Procedure

Refer to REMOVAL [10/2018 - 07/2022]

1. Disconnect the crankshaft position sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

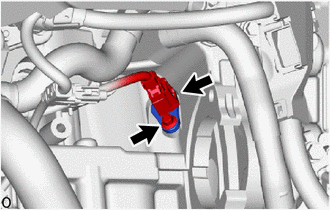

2. Using an 8 mm socket wrench, remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
   NOTE:

   If the crankshaft position sensor has been struck or dropped, replace it.
